I started riding again in about 2004 after having not ridden in england since 1980. Back then the bikes i liked best were the trail bikes the most fun ever was to go riding find an opening to woods or fields and just enjoy the freedom and fresh air and getting absolutely covered in mud. I was always happiest on about 175cc because the bikes were light and managable.I started thinking about getting another bike no traily type bikes seemed to turn up .so i bought a gilera runner 125vx brand new, they looked quite smart and i could use it to commute. I liked the look of a Kawasaki kdx 220 or a kdx 250 . Then one day passing the Ducati dealers near me i spotted this bike.I stopped and bought it there an then . I didnt really want something as large as a 644CC although the bike is very lightweight, it just took a while to get used to the big single. The bike gets plenty of attention everybody assumes its something you have customised yourself because there arent that many of them on the roads. Theres a great website http://ccmriders.co.uk full of enthusiasts that fiddle around with the bikes and meet up .



Turn the key, hit the electric start button for the first time and you break into a grin - but then so does everyone when they hear the roar.

The note from that stunning big single engine, with twin carbs and twin sparks - tuned through a stainless steel exhaust - reminds you what it is that you find so enjoyable about riding a motorcycle.

Slot it into gear, open the throttle - and the grin on your face spreads even further.

You just know that this is a motorcycle with the power and performance for you to push as hard as you want - but that you'll always be able to tame when you need to.

The handling performance that the chassis, frame and short wheel base promised is delivered in a ride that is more precise and immediate than anything you've ridden before.

Ride into town - and if you can ignore the admiring, inquisitive stares of every other biker you pass - you'll find the R30 is the perfect commuting machine. Oil cooled efficiency from the engine combines with a cush drive that gives you a ride so smooth you'll never want to get off.

The ride height gives you great visibility over hedges and cars, and the 820mm width gets you safely through the narrowest gaps.

But it's when you take it out of town that you'll discover what the R30's really about; this motorcycle redefines what you can expect from two wheels on twisting country roads.

You've got to ride it to believe it. OK, a Supermoto hasn't got the straight line performance of sports bikes - but then who passed their test to ride in straight lines? The R30 rewards you in other ways, sticking to the road through twisting bends as if it was on rails; with acceleration, handling and braking that will get you safely past anything.

CCM R30



644 R30 - Bike Specification

Engine
Type 4 stroke, oil-cooled, OHC
No of Cylinders 1
Bore 100mm
Stroke 82mm
Displacement 644cm3
Compression Ratio 9:3:1
Carburettor Mikuni BSR32, twin
Starter System Electric
Lubrication System Wet Sump
Power 53hp (39.5kW) @7000rpm
Torque 52Nw @5800rpm
Valve Train Chain Drive
Ignition Electronic Ignition (CDI)
Generator 12V/200W AC
Rectifier Three Phase
Clutch Wet multi-plate type
Transmission 5-speed, constant mesh
Gearshift Pattern one down four up

.ccm r30










Chassis
Overall Lenght 2078mm
Overall Width 820mm
Wheelbase 1500mm
Ground Clearence 280mm
Seat Height 865mm, (815mm ofr low version)
Dry Mass 137kg
Front Forks 43mm diameter USD type, Lenght 910mm
Compression damping adjustable to 35 positiobs
Rebound damping adjustable to 30 positions.
Stroke 275mm
Rear Shock Mono shock- Lenght 340mm. Piggy-back reservoir.
Compression damping sdjustable to 7 positions.
Rebound damping adjustable to 11 positions
Stroke 95mm
Brakes
Front Brembo, 320mm floating disc
Rear Brembo, 220mm disc
Tyres
Front 120 x 60 x 17 Pirelli Dragon
Rear 150 x 60 x 17 Pirelli Dragon

Other
Fuel Tank PA12 nylon and x-linked PE composite construction. 10 litre
Colours Lucifer Orange, Azure Blue, Tornado Red, Jet Black, Caspian Blue
ccm r30

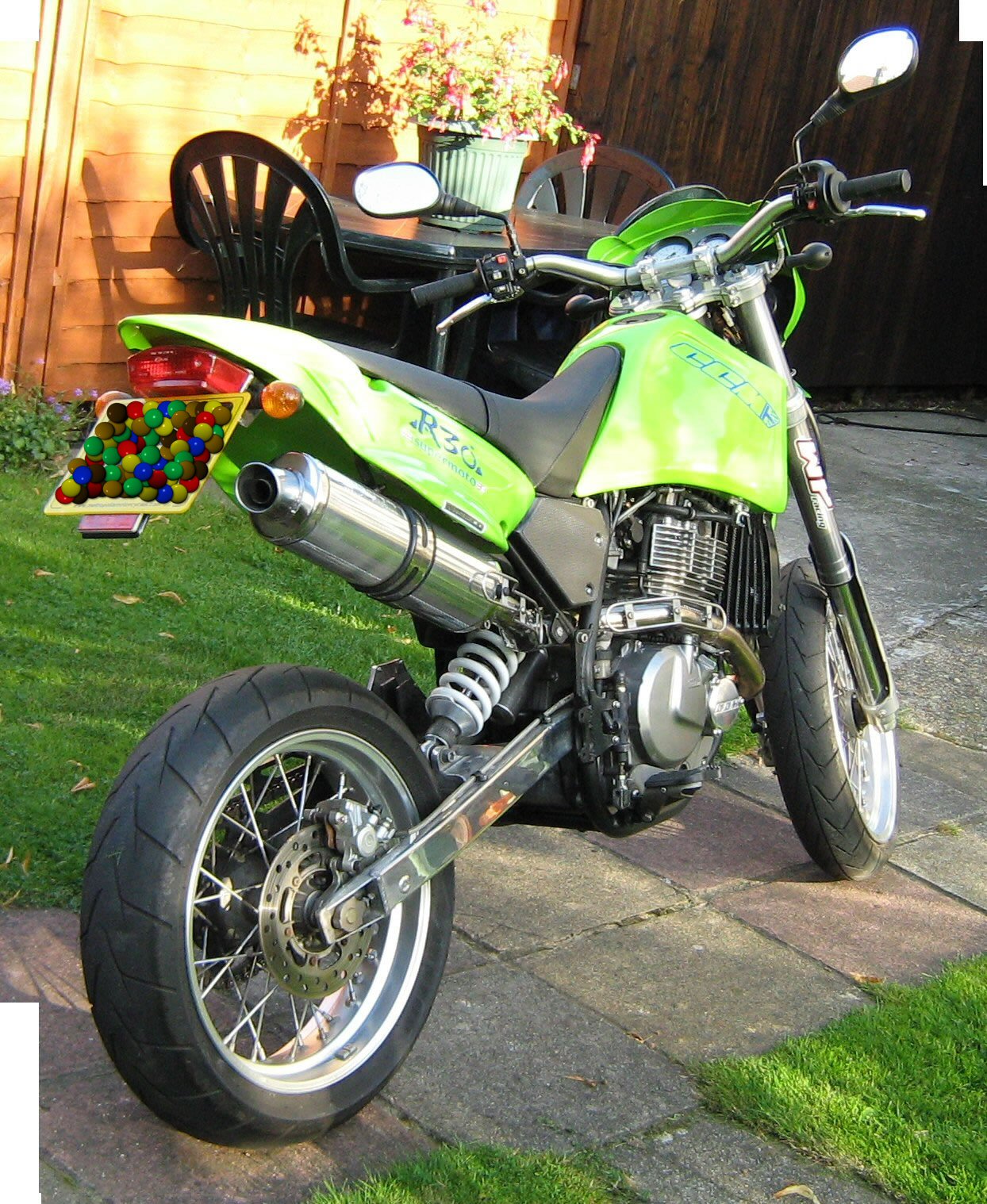

Click for a few pictures of Shrek R30
